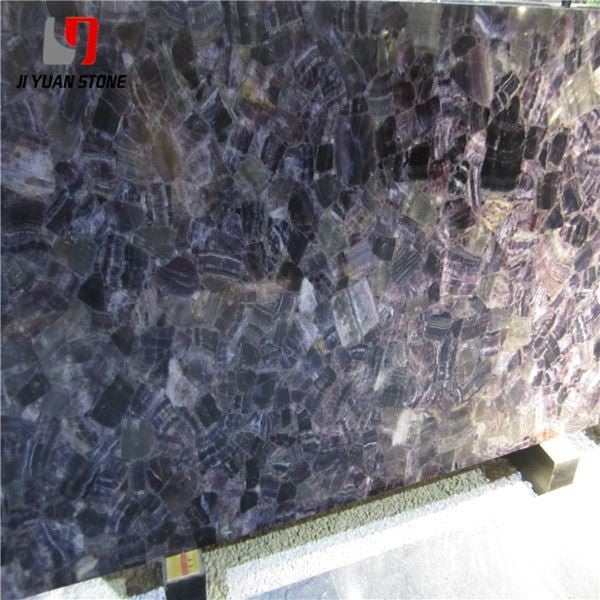

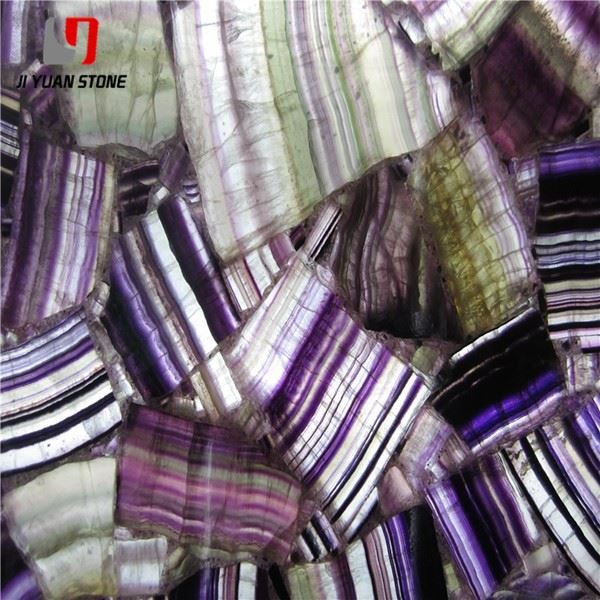

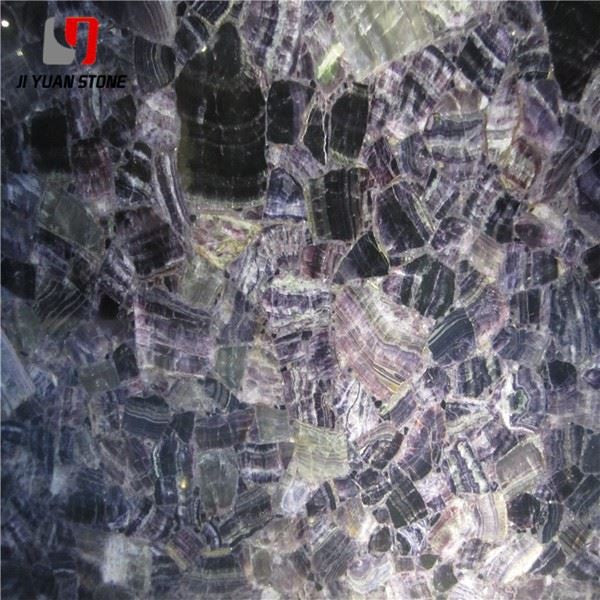

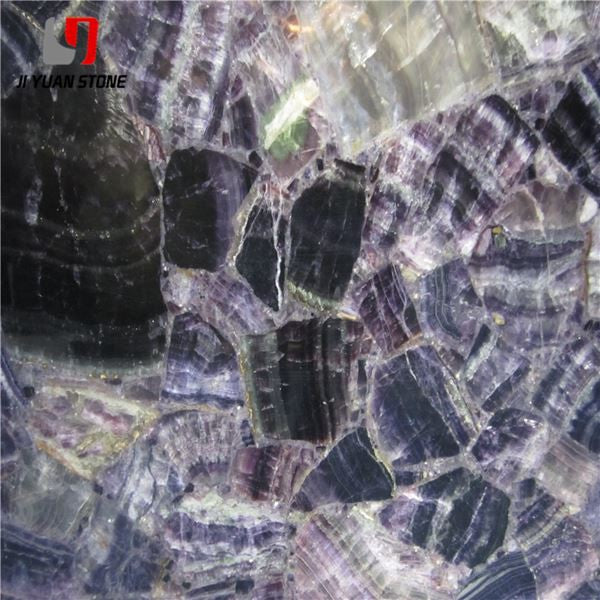

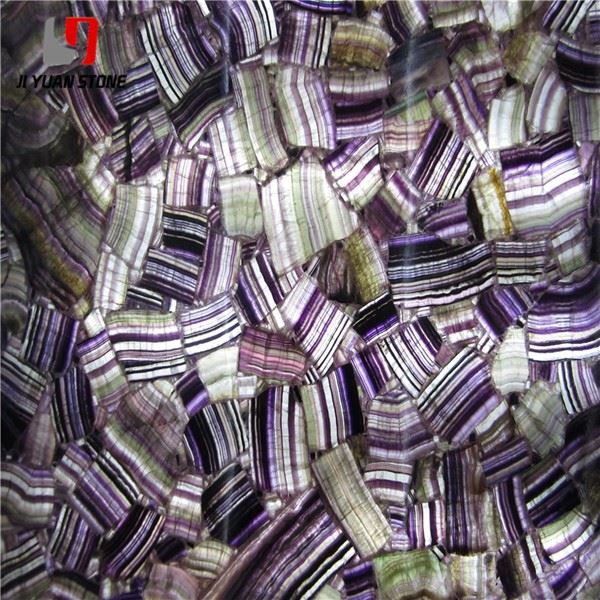

Purple Agate Quartz Slab

This stunning Purple Agate Quartz Slab is a beautiful and durable choice for any countertop or decorative surface. With its rich purple hue and impressive strength, it adds a touch of elegance and functionality to any space. Made from natural agate and quartz, it is sure to stand the test of time.



Feature	Details
Product Name	Purple Agate Quartz Slab
Surface Finished	Honed,Polished
Color	Yellow,Black,White,Red,Purple Wood,Green,Grey,Pink,Rainbow,Pink,Tiger Eye etc
Advantage	(1)Big hardness (2)Very durable (3)Strong corrosion resistance (4) High-temperature resistance (5)Non-toxic and non-radioactive (6)Low cost
Usage	Interior & Exterior Decoration. Be widely used in countertops, washing basins, and bar counters, and also suitable for exterior wall panelling, flooring and etc.
Small slab	1800(up)×60-90(up)mm Thickness: 15mm, 18mm, 20mm and etc
Big slab	2400(up)×120(up)mm Thickness: 20mm, 30mm and etc
Cut to size	300 x 300mm, 600 x 600mm, 800 x 800mm and etc Thickness:10mm, 15mm, 18mm, 20mm and etc
Kitchen countertop	96" x 25.5", 108" x 26", 96" x26", 108" x 25" and etc Thickness: 20mm;30mm;20mm+20mm laminate and etc
Island top	96"x36",108"x36",96"x40",72"x36" and etc
Vanity top	31"x22",37"x22",49"x22",61"x22",73"x22" and etc
Stair step&riser	1000-1300x300x20/30mm & 1000-1300x150x20mm
Quality control	(1)Standard Exporting Seaworthy Package ( Inner: plastic film and foam; Outer: Solid Wood crates or pallets.) (2) Color Difference Control (3) Thickness tolerance:+/-0.5mm,+/-1mm
MOQ	Welcome Small Trail Orders
Sample	Contact Us For Free Samples
Payment	T/T, L/C, Escrow, Western Union
Delivery	Within three weeks after Confirmation



Wet Layout for Small-Sized Panels

1. Determining the Layout Lines

• Use a wire hammer to hang a vertical line from top to bottom along the leveled wall, cylinder, or door and window.
• This helps determine the distance between the decorative panel surface and the base layer.
• The distance between the finished surface of the panel and the structural layer:
• 10mm thick plate → 15mm (plate thickness + structural layer thickness)
• 20mm thick plate → 25m



• Based on the vertical line position, mark the outer contour line of the board along the wall or cylinder on the purple agate quartz slab (this completes the first layer surface line).

Wet Layout for Large-Sized Panels

1. Determine the Distance and Thickness Considerations

• Use a wire hammer to hang a line from top to bottom to set the distance between the board and the base layer.
• Consider:
  • Board thickness
  • Potting width
  • Steel mesh size
• This is generally around 50mm.

2. Marking the Panel Contours

• Once the size is determined, use the line hammer to mark the outer contour on the purple agate quartz slab.

3. Handling Heights Above 5m

• If the height exceeds 5m, pull vertical steel bars on both left and right sides based on the outer contour.
• Stretch a horizontal line according to the elevation.

4. Dividing the Panel into Blocks

• Based on the total height and gaps, divide the elastic line into blocks.
• Use this reference to pop up the level of each board layer on the wall.
• If there is a skirting board, ensure its upper line is clearly marked.

5. Layout for Cylinder Surfaces

• When working with large-sized plates on cylindrical surfaces, first measure the centerline of the column.
• Measure and mark the horizontal line between columns.
• Finally, pop out the block line for the column panel.
